Trunk Lip CB Antenna Mounting Kit

• Everything you need to set up your CB antenna on the edge of your car trunk - no drilling required
• Kit comes with a mount and 18' of FireRing coax cable
• Recommended for antennas up to 3' tall

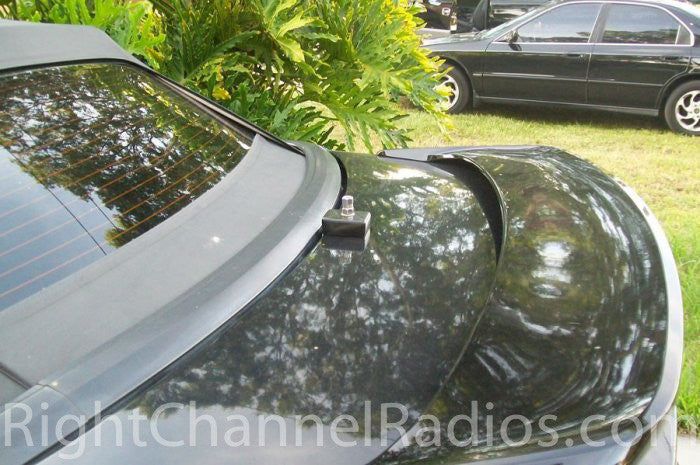

The Firestik trunk-lip kit allows you to mount a CB antenna on the edge of a car trunk, usually between the trunk deck and the rear window. There's no drilling required, because the mount clamps to the trunk edge when you tighten the two set screws. The rear side of the bracket has support feet with rubber bumpers to protect the vehicle finish. The mount comes with a lug-style antenna stud and an Allen wrench to tighten the screws, plus 18' of Firestik FireRing coax cable. Recommended for antennas up to 3' tall.

Model / SKU: Firestik MK-748R

Recommended for: Mounting fiberglass antennas up to 3' tall on a vehicle's trunk lip.

Compatible with: All fiberglass and center-load antennas that use a standard 3/8" x 24 threaded base.

Installation Notes:

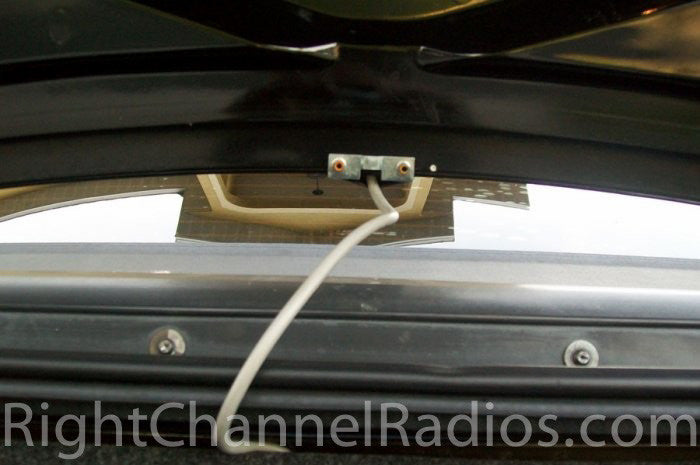

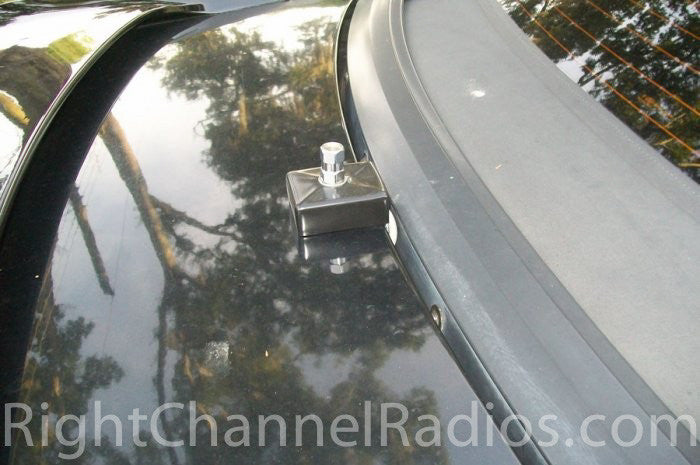

Important Note:The PL-259 connector (radio screw-on end) is supplied in this kit, but is NOT installed on the coax cable. This allows you to route the cable into the vehicle through a smaller (0.375") hole. After placing the connector on the coax, you must solder the center to the PL connector.The trunk-lip bracket slides over trunk edge, normally between the trunk deck and the rear window. Two set screws are tightened from the underside to hold the bracket in place. The gap between the movable and unmovable areas (trunk deck and vehicle body) needs to be about 0.100" (3mm) to accommodate the mount. The underside requires about 0.5" (13mm) to accommodate the bottom of the bracket with set screws. While these measurements are provided for reference, this mount is nearly universal and should fit almost all vehicle trunks.

Mount Location: Trunk / Hatch

Stud Type: Lug (Ring and Terminal)

Material: Other

Product Includes:

• Firestik trunk-lip mount

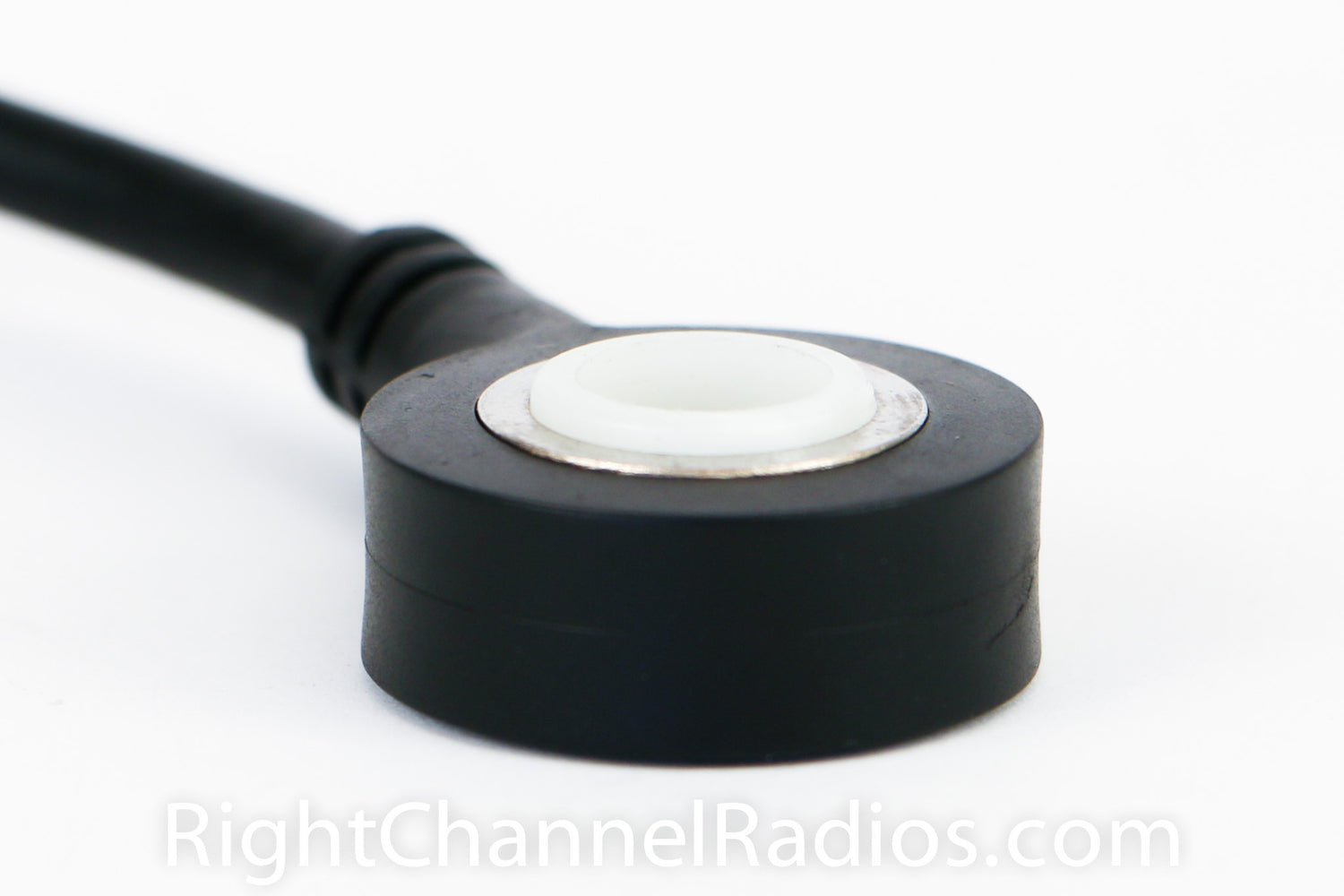

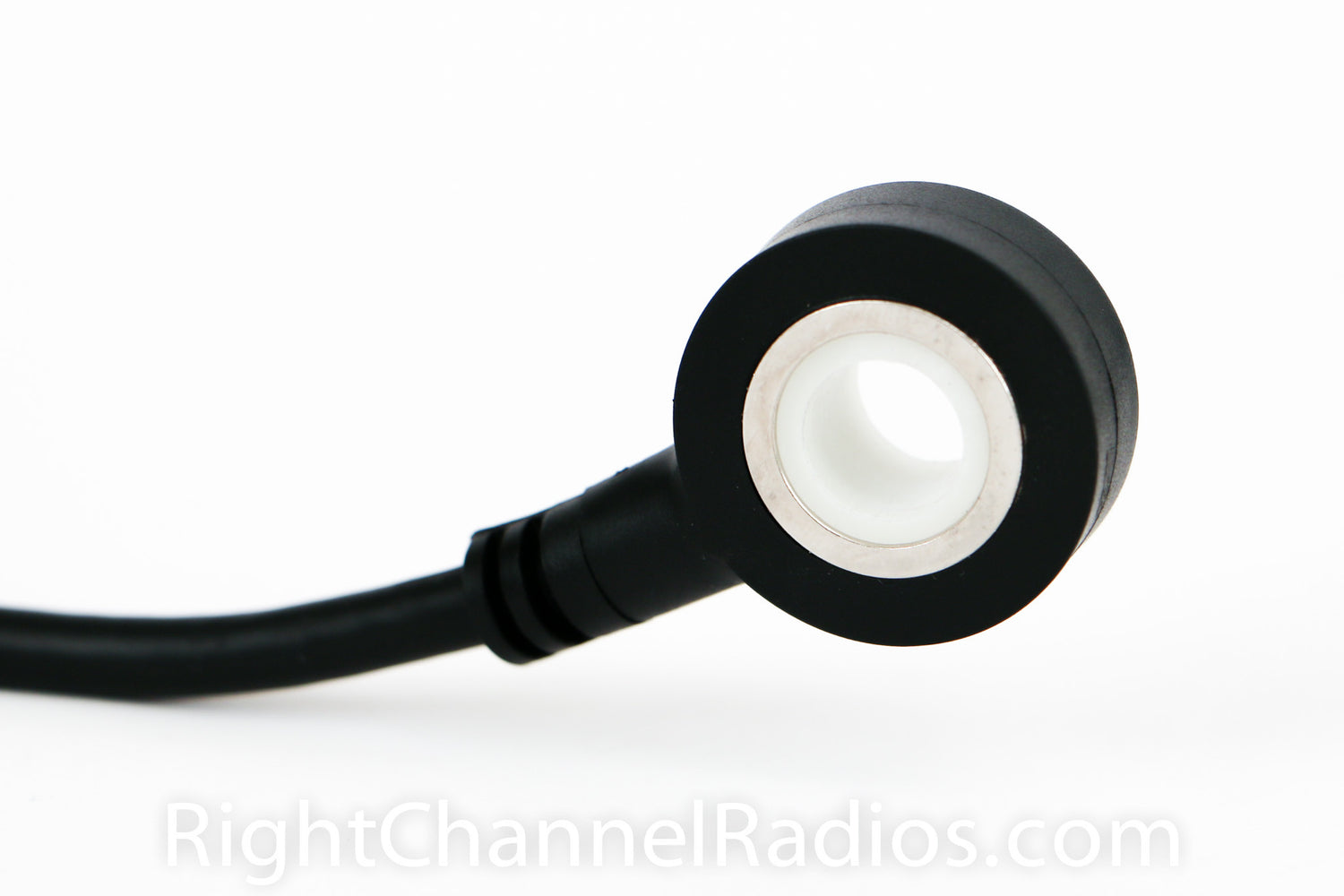

• 18' of Firestik FireRing CB coax cable

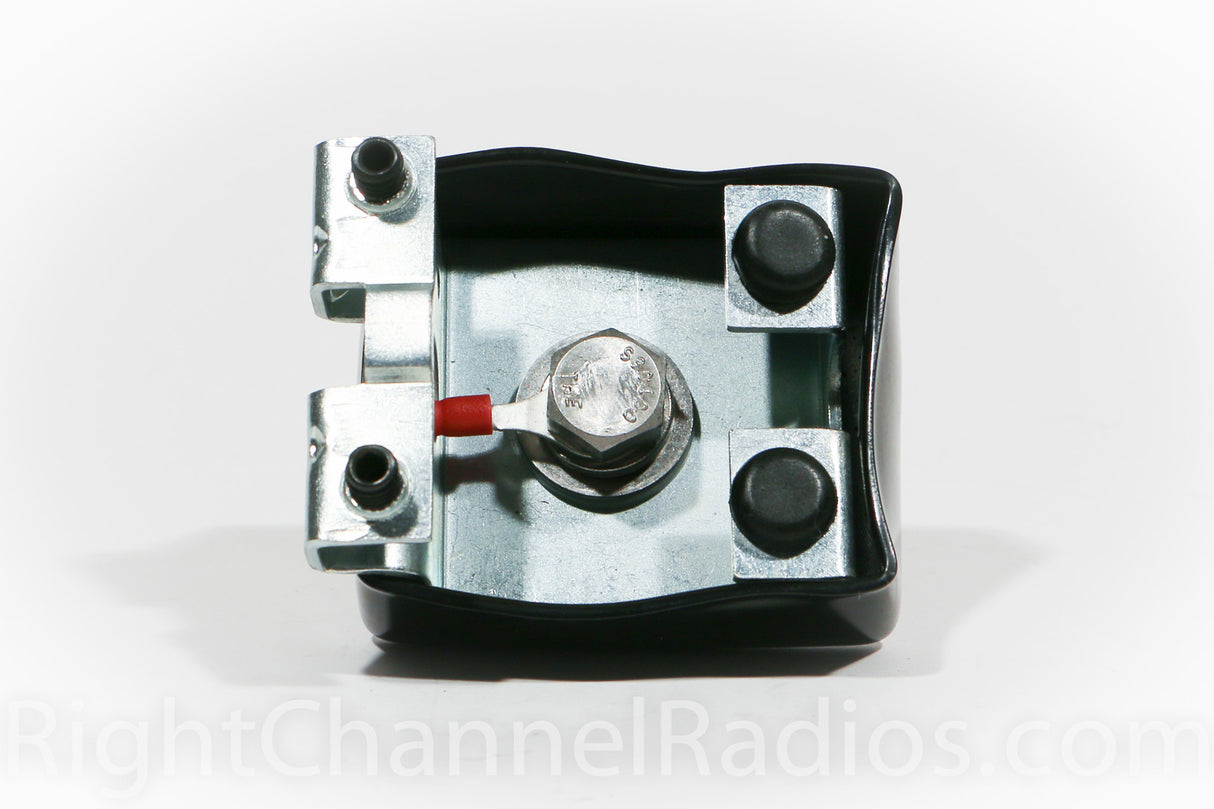

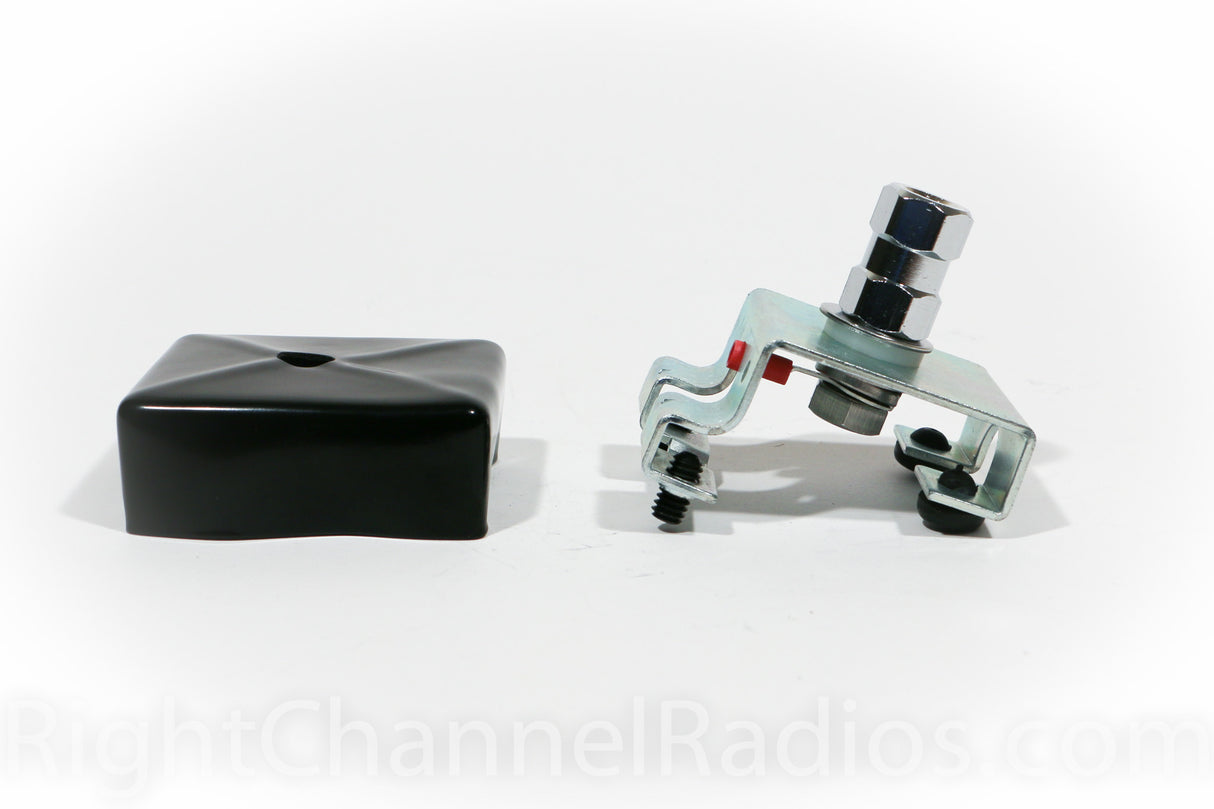

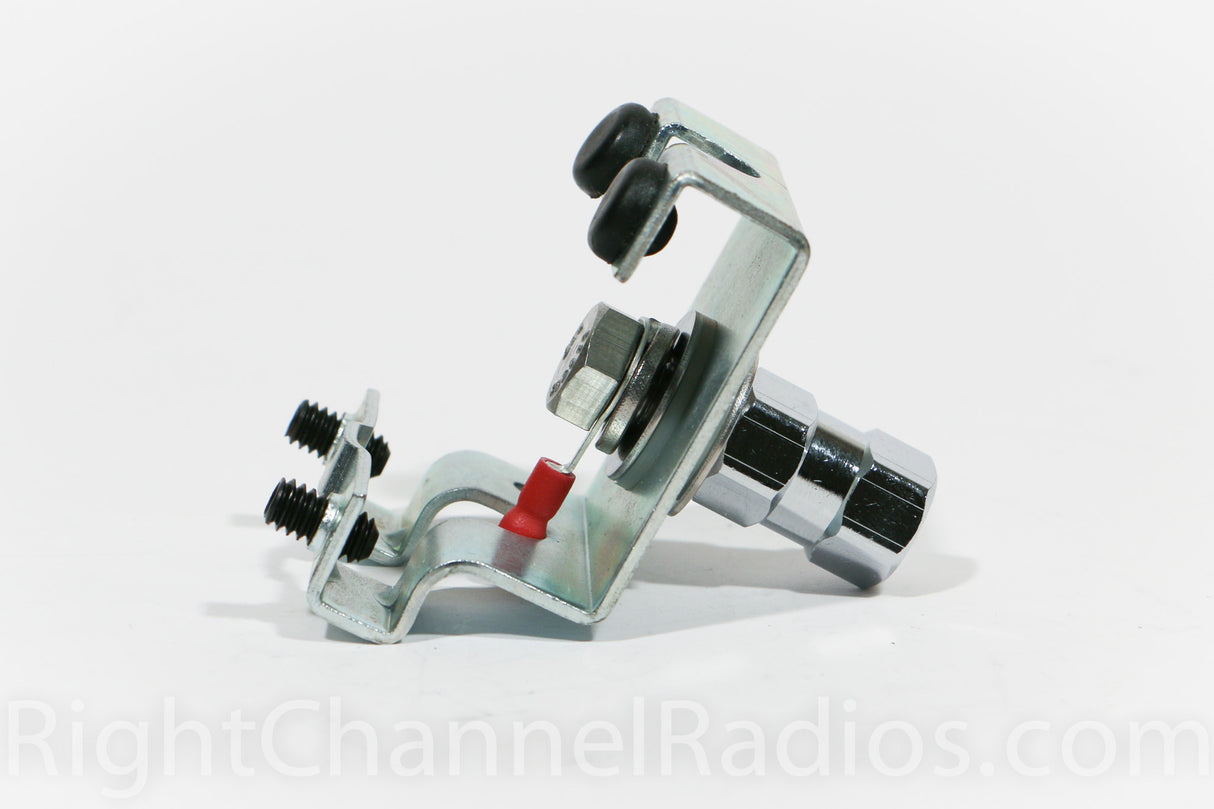

Firestik CB Antenna Mount: The trunk-lip bracket slides over trunk edge, usually between the trunk deck and the rear window. Two set screws are tightened from the underside to hold the bracket in place. No holes are required on the vehicle. The rear side of the bracket has support feet with rubber bumpers to protect the vehicle finish. The mount comes with a K-4 antenna stud and an Allen wrench to tighten the screws. Recommended for antennas up to 3' (92cm).

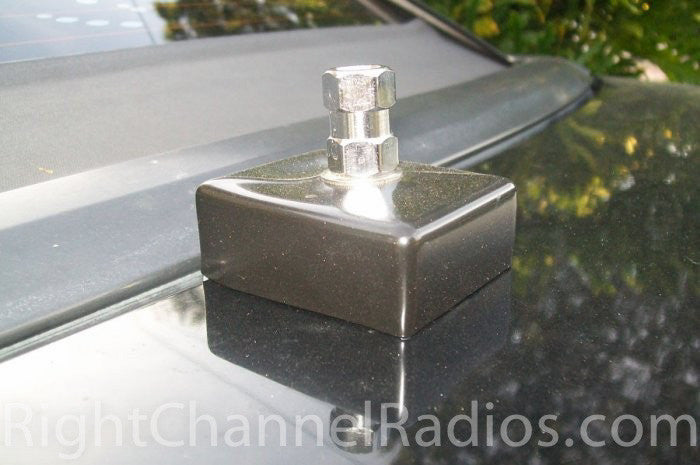

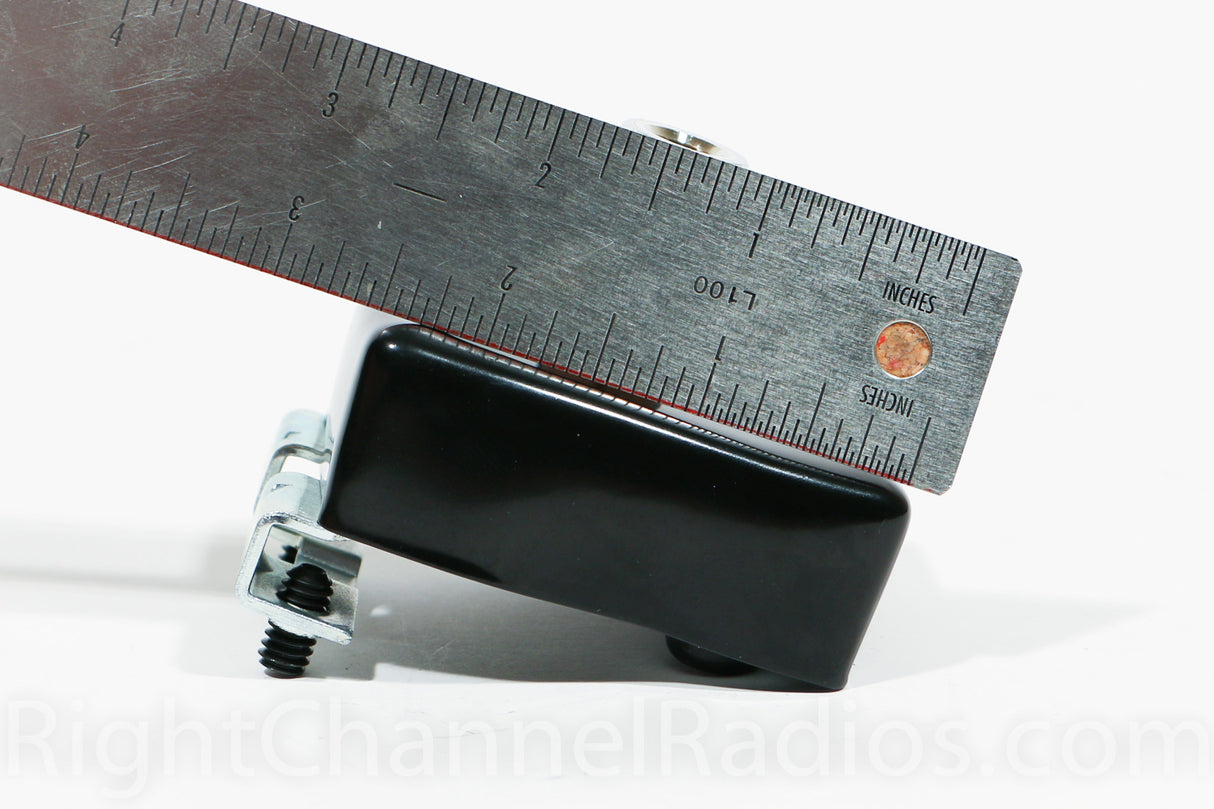

The mount is 2" (50mm)wide and 2.5" (63mm) deep. It stands 1" (25mm) above the vehicle surface without the stud mount, which will add 2.1" (53mm) when in place. The gap between the movable and unmovable areas (trunk deck and vehicle body) needs to be about 0.100" (3mm) to accommodate the mount. Additionally, the underside requires about 0.5" (13mm) to accommodate the bottom of the bracket with set screws.

• Easy trunk installation with no drilling
• One-year warranty
